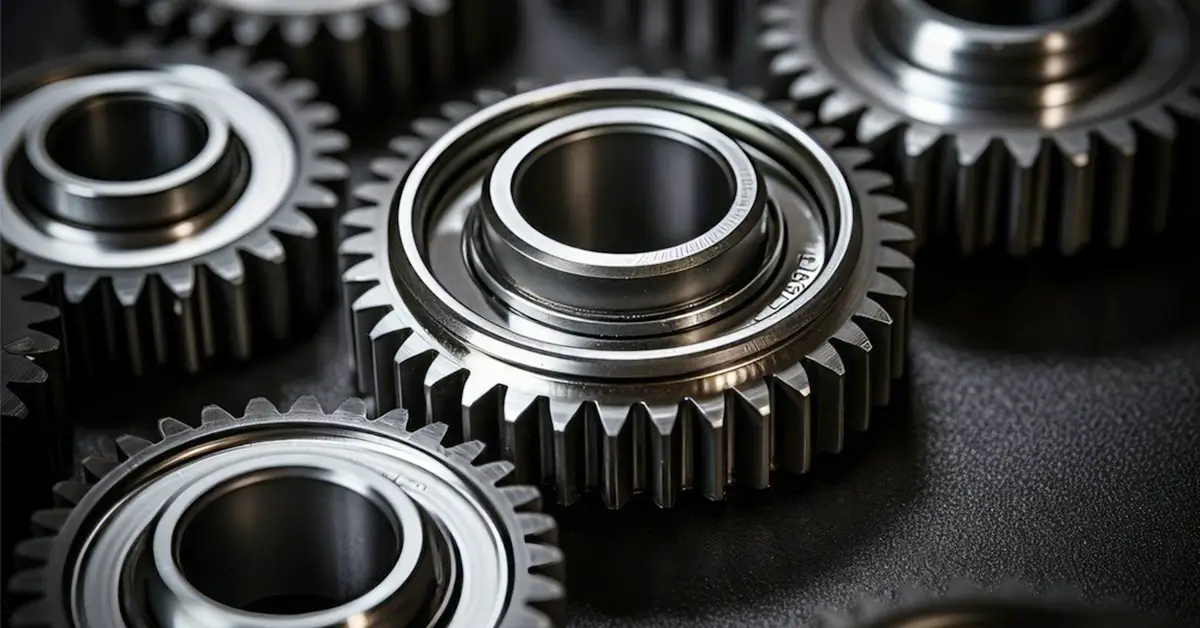

High Precision Gears Processing Methods
In mechanical transmission systems, gears are known as the heart of industry. From new energy vehicles and aero-engines to precision machine tools and intelligent automation equipment, gear precision directly determines the equipment’s noise level, transmission efficiency, service life and more. Driven by this trend, demand for high-precision gears is rising rapidly, making their machining processes extremely critical.So how to manufacture gears that meet high-precision specifications? What machining methods can fulfill such rigorous requirements? This article will give you a detailed introduction.
I. Core Requirements for High-Precision Gears Machining
At Songjie, before discussing machining processes with customers, we first clarify their core requirements for high-precision gears. Compared with ordinary gears, high-precision gears impose far stricter standards on dimensional accuracy, surface roughness, tooth profile error and tooth pitch error. Generally, such gears are required to reach a much higher precision grade. In some special fields, the precision requirement even extends to the submicron level. This means traditional machining methods can no longer meet the demand, and more advanced, high-precision machining technologies must be adopted.
II. High-Precision Gears Main Machining Methods
There are numerous finishing processes for high-precision gears. The following are the primary machining methods to achieve high precision and superior surface quality:
1. Precision Gear Grinding
Gear grinding is one of the most commonly adopted processes with the highest precision ceiling and excellent stability in the manufacturing of high-precision gears, ensuring both dimensional accuracy and superior surface quality.It is also the most widely used finishing process after heat treatment, featuring powerful precision correction capability.This process adopts high-precision grinding wheels to perform precision grinding on gear tooth surfaces, so as to attain extremely high dimensional accuracy and surface finish.
1.1 Machining Process
First, perform micro-cutting on the tooth surface with a gear hobbing machine or gear shaping machine to form the basic profile of the gear. Next, improve the hardness and wear resistance of the gear through heat treatment. Finally, conduct precision grinding on the tooth surface using a dedicated gear grinding machine to minimize errors in tooth profile and tooth pitch.
In terms of machining principle, gear grinding is divided into Form Grinding and Generating Grinding.Form Grinding dresses the grinding wheel into a cross-section that perfectly matches the shape of the gear tooth space, and grinds the entire tooth surface by one-time cut. It is suitable for precision gears with few teeth, large module and large diameter. Generating Grinding utilizes the continuous meshing motion between the grinding wheel and the workpiece to generate the tooth surface via rolling cutting. Common types include dish wheel gear grinding, cone wheel gear grinding and worm wheel gear grinding.
Main Process Flow: Finish turning of gear blank → Rough hobbing / gear shaping (with 0.1–0.3mm finishing allowance reserved) → Quenching and tempering + carburizing and quenching heat treatment → Straightening and correction → Grinding wheel dressing and calibration → Form grinding / generating grinding finishing → Correction of lead and tooth profile errors → Deburring and cleaning → Precision inspection (tooth pitch, gear runout, surface roughness) → Finished product warehousing.
1.2 Machining Characteristics
The greatest advantage of gear grinding is that it can significantly improve the surface quality and precision of various gears, and is especially suitable for the machining of high-hardness materials.It can correct deformation caused by heat treatment and greatly enhance the accuracy of tooth profile, tooth lead and tooth pitch, achieving precision grades of IT3~IT5 (ISO/DIN Grade 3–5) and a surface roughness of Ra 0.2μm ~ Ra 0.4μm. In addition, gear grinding can effectively reduce noise and vibration during gear operation. With high productivity, it further improves the overall performance of the equipment.
1.3 Application Scenarios
It is applicable to electric drive gears for new energy vehicles, spindle gears for precision machine tools, aviation hydraulic gears, heavy-duty aluminum alloy steel transmission gears, and high-precision reduction gears. It serves high-end working conditions that demand extreme precision, stability and service life. It is widely used in gear machining for aerospace, precision instruments, new energy vehicles, precision industrial control and high-end reducers. It is especially suitable for manufacturing gears under high-load and high-speed operating conditions.
2. Precision Gear Honing
Precision gear honing is a machining process that performs micro-cutting and polishing on gear tooth surfaces through the meshing motion between a honing wheel and the workpiece gear. It is generally adopted as a mild finishing method for high-precision gears and serves as the preferred process for low-noise precision gears. Its main purpose is to further improve the surface quality and meshing performance of gear products. Unlike gear grinding, which focuses on geometric accuracy, gear honing prioritizes surface performance.
2.1 Machining Process
After the rough machining and heat treatment of gear forgings, the gear and the honing wheel are mounted on a gear honing machine for processing via relative motion between them.During the honing process, the honing wheel performs micro-cutting on the gear tooth surface, while removing the oxide layer and minor deformation generated after heat treatment.
Main Process Flow: Main Process Flow: Gear rough machining → Heat treatment and quenching → Finishing of inner bore and reference surface → Gear honing finishing (cross-axis meshing and sliding grinding between honing wheel and workpiece) → Tooth surface polishing and stress relief → Precision inspection and grading.
2.2 Machining Characteristics
The unique advantage of gear honing is that it not only improves the surface finish and transmission smoothness of high-precision gears, but also optimizes meshing performance and reduces operating noise.It features superior tooth surface texture, low noise and high fatigue strength, and can eliminate microscopic defects left by gear grinding or gear shaving. Moreover, this process forms an irregular cross-hatch pattern on the tooth surface. Such texture is conducive to the formation of lubricating oil film and can effectively disrupt the acoustic resonance frequency. It achieves precision grades of IT5~IT8 (ISO/DIN Grade 5–8), with tooth surface roughness reaching Ra 0.4–0.8 μm; heavy-duty gear honing can even reach Ra 0.2–0.4 μm.
In addition, gear honing imposes relatively low requirements on equipment and is suitable for mass production.Its only limitation lies in its weak ability to correct geometric errors; it cannot significantly compensate for large deformation caused by heat treatment, and therefore needs to be combined with gear grinding as pre-processing.
2.3 Application Scenarios
Gear honing is widely applied to the manufacturing of automotive transmission gears, low-noise gears for new energy vehicles, low-noise transmission gears for automated equipment, and high-end civilian transmission gears.It is ideal for mass production scenarios that pursue low noise, high running smoothness and high cost performance.
3. Precision Gear Lapping
Gear lapping is regarded as the ultimate polishing process for achieving mirror-like tooth surfaces and zero backlash.It is an ultra-precision finishing process for high-precision gears and belongs to the micron-level polishing technology. It does not focus on correcting tooth profile errors; its core function is to optimize tooth surface finish to the extreme and form mirror-grade tooth surfaces. It is suitable for gear pairs with extremely high precision requirements to achieve optimal contact pattern and ultra-low surface roughness. It is commonly adopted as the final finishing process after gear grinding or gear honing.
3.1 Machining Process
Final ultra-precision polishing is performed by lapping paired gears with abrasive compound to achieve an optimal contact pattern. This process is mostly used for bevel gears and the final running-in of ultra-high precision gears.
Main Process Flow: Completion of gear grinding/honing finishing → Clamping of paired lapping gears → Application of lapping compound → Low-speed meshing lapping → Repeated polishing to remove microscopic tool marks → Cleaning and degreasing → Precision inspection.
3.2 Machining Characteristics
High-precision gears processed by gear lapping can achieve a tooth surface roughness of less than 0.2 μm, delivering a mirror surface effect with an extremely low meshing friction coefficient.The precision can reach IT4~IT5 (ISO/DIN Grade 4–5). In addition, gear lapping can effectively eliminate microscopic stress concentration on the tooth surface, greatly reduce wear during high-speed operation, and extend the service life of gears.
3.3 Application Scenarios
This machining method is commonly applied to aerospace servo mechanisms, harmonic reducers for precision robots, transmission components of high-end medical devices, gears for ultra-high-precision instruments, transmission gears of high-end testing equipment, and ultra-high-speed spindle gears.
III. High-Precision Gear Machining Methods FAQ
A: Aluminum alloy steel gears feature outstanding lightweight advantages, yet their material hardness and wear resistance are lower than those of alloy steel.For scenarios requiring high-speed, heavy-load and high-precision transmission, gear grinding is preferred to ensure dimensional accuracy and meshing stability.If priority is given to low equipment noise, smooth operation and cost-effective mass production, gear honing is the optimal option. It can greatly optimize the tooth surface meshing performance and avoid transmission howling noise.
A: Gears inevitably produce slight deformation after heat treatment. Conventional hobbing, gear shaving and gear honing processes cannot correct such inherent geometric errors.Only gear grinding can comprehensively calibrate tooth profile, tooth lead and cumulative pitch errors, enabling gears to meet the access standards of aerospace and high-end new energy equipment. It thoroughly eliminates hidden troubles such as loosening, abnormal wear and excessive noise during long-term operation.
A: Gear grinding generally involves higher processing costs, while gear honing is more suitable for mass production. We will provide you with the most cost-effective solution according to your annual demand quantity.
Conclusion
In addition to the methods mentioned above, we also support a range of high-precision gears machining techniques, including precision gear hobbing, Electrical Discharge Machining (EDM), precision gear shaving, and more. At Songjie, we possess a deep understanding of how to machine precision gear, by assisting you in selecting the most suitable machining method, we can not only enhance product quality but also significantly boost your market competitiveness.
